One Lever Action MT Holders

兼容SG所有SFP-550系列和SFP560A（即将发布）光纤研磨机的夹具型号：

PH55-MT-24SQ1 (MT/PC, 24-axis)

PH55-MT-12SQ1 (MT/PC, 12-axis)

PH55-MT8A-24SQ1 (MT/APC, 24-axis) coming soon

PH55-MT8A-12SQ1 (MT/APC, 12-axis) coming soon

兼容市场上其他厂商中心加压技术的光纤研磨机的夹具型号：

PH51-MT-20SQ1 (MT/PC, 20-axis)

PH51-MT-12SQ1 (MT/PC, 12-axis)

PH51-MT8A-20SQ1 (MT/APC, 20-axis) coming soon

PH51-MT8A-12SQ1 (MT/APC, 12-axis) coming soon

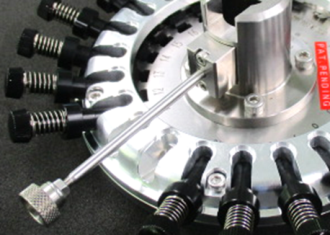

圆盘上有快速上夹和卸夹的摆杆

Features

安装MT插芯不需要扭力螺丝刀。

只需要简单的用摆杆锁紧和松开MT插芯。

可以节约30%的夹具安装时间。

兼容现有的所有SG的研磨机。

在研磨MT插芯性能不变的基础上美化了夹具的外观。

Disclaimer
1) Polishing method with use of fibrous material is patented in the U.S (US patent No. 6106368).
2) A ferrule assembly with fiber protrusion between 0.5um and 2.5um after polishing is patented in the U.S. (US patent No. 5743785).
